Friday, October 30, 2015

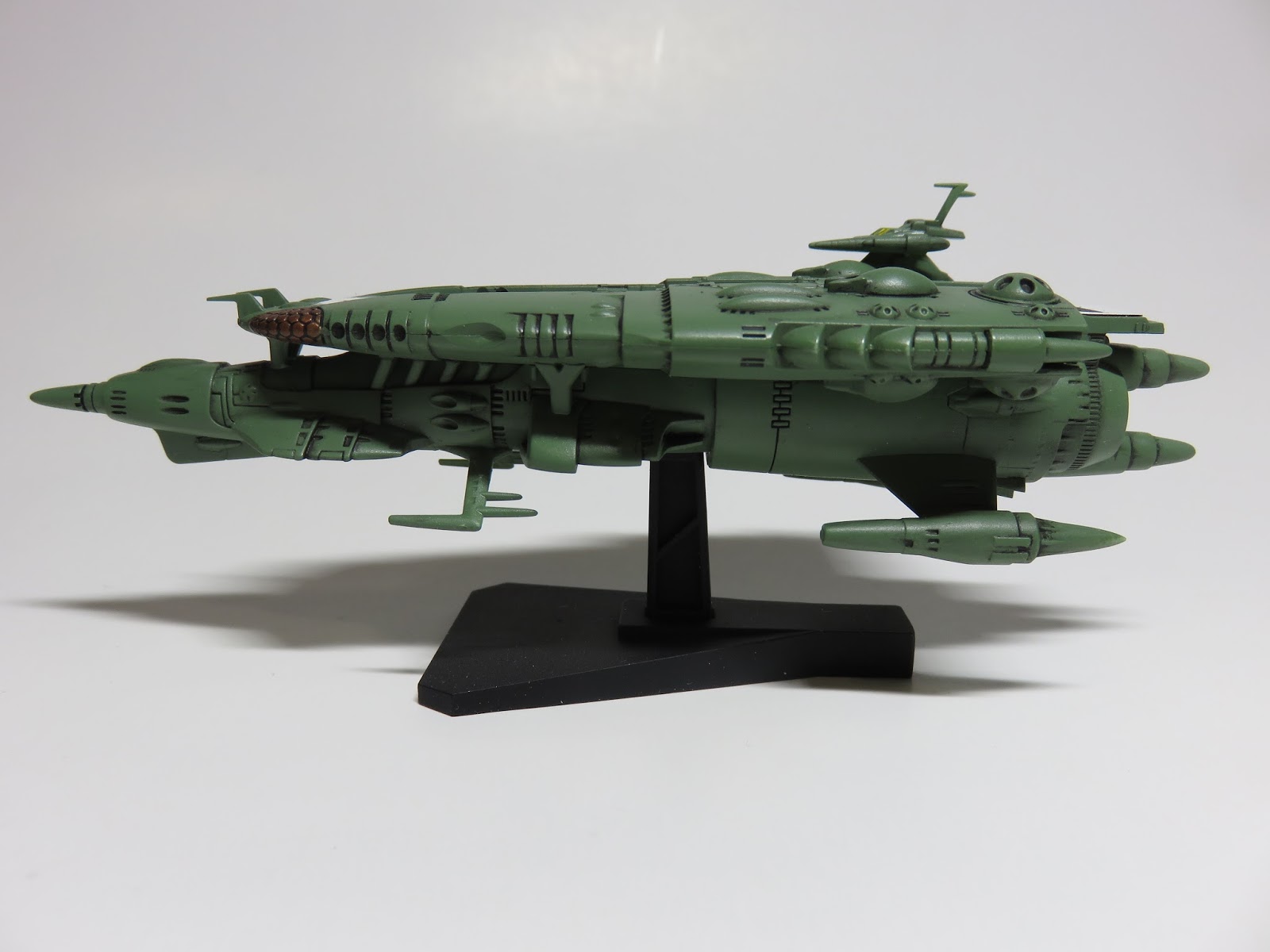

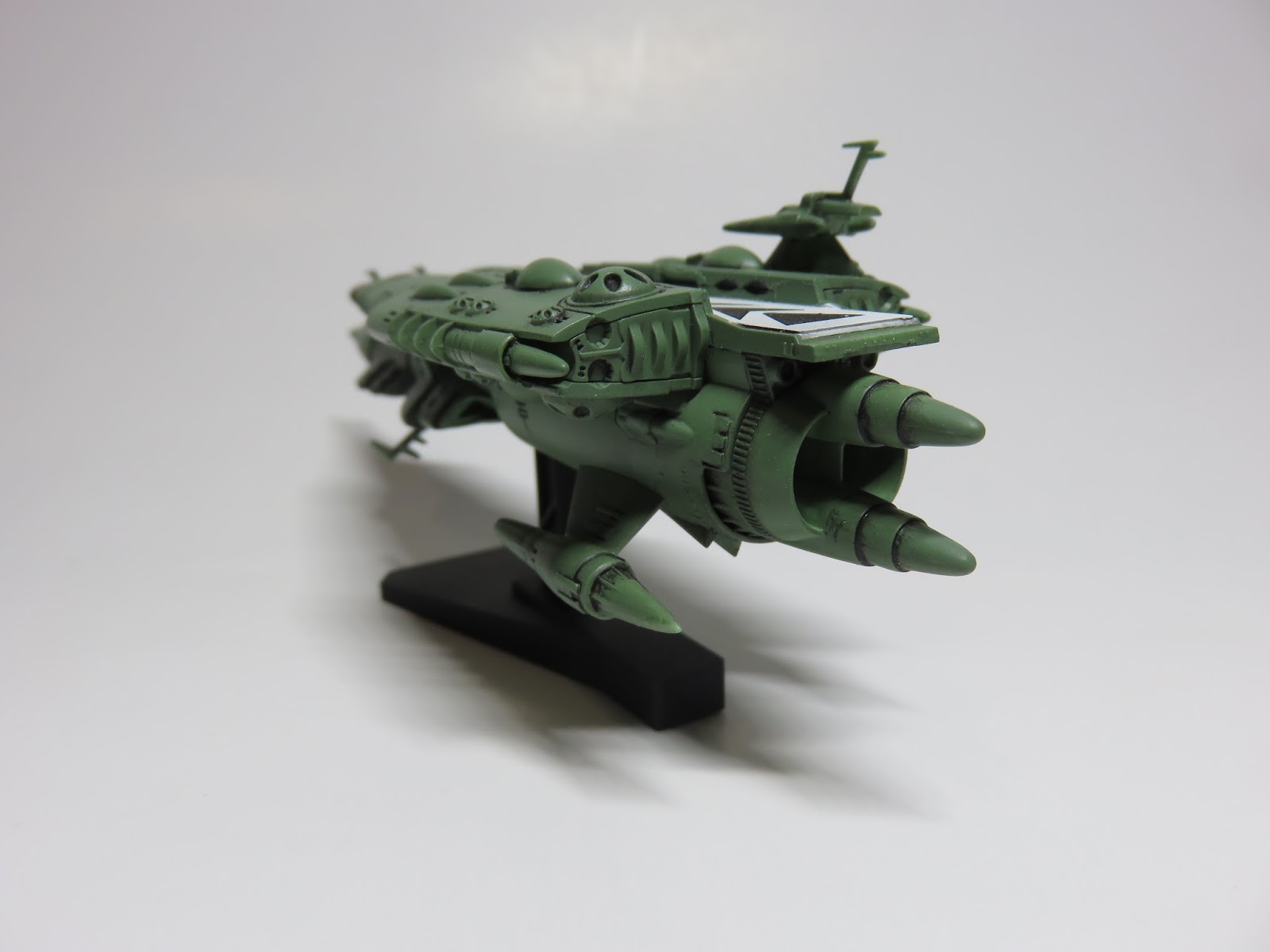

Bandai - Mecha Collection - No.8 Nazca Class Carrier


Most (if not all) the Yamato 2199 ships are really cool. And the Gatlantis Nazca Class Carrier is definitely one of them. Though in the 2199 series it had a short screen time Bandai built all 3 ships in their Mecha Collection. They later released the Nazca Class in 1:1000 scale, which comes with a Gatlantis Fighter. I picked this one up summer 2015 and as soon as I opened the box I was drawn to building it. I had another kit on the shelf so this one stayed put for the time being. But in the Autumn took it up again and I'm really glad I did. It's a quick build and lots of fun :D


































Thursday, October 22, 2015

How to Make: Clear Cockpit Dials

Adding in a few and simple details can help you model stand out. Drilling out the exhausts or gun barrels, adding in a brake line, simple tricks. One that I've wanted to try is making cockpit dials. Many modellers do this and it's quite simple. For this build I've used Revell's new tooled 1:32 Spitfire Mk IIa.



The decals are in nice register and feature nice detail.


I first painted the panel Flat Black.


Tools I used for drilling out the holes: A Pin Vice, Rounded File, and Hobby knife.


I first drilled out the holes with the Pin vice, widening the holes with the Hobby Knife,
and finally cleaning and shaping with the rounded file.


Next, I've cut out the decals and left them on the paper,


I then applied Micro Scale Kristal Klear,


And Glued both decals to the back.


Lastly was to fill in the dials with more Kristal Klear,


Once the glue dries clear, it shows the detail of the dials, giving the impression
that they are behind glass.

This method is easier with 1:32nd and 1:24th scales, but I have seen it done in 48th scale too. It depends on the modeller and their preferences. It's a fun added touch that once again is simple and adds a nice bit of detail to you model.

Sunday, October 18, 2015

Airfix 1:72 SaaB 35 Draken





Last summer (2014) I built two vintage Matchbox 1:72 Viggens. This was the first time I had ever built a Swedish kit but I was hooked, and the Draken was high next on my list. For some reason I had in mind to build this vintage Arifix kit originally released in 1970. I found one at my local hobby store but was broke until next week, and as you might have guessed the kit was gone when I returned. Thankfully I found one at the Nanton Model show for $5 Cdn.  In September I made the decision to finally get to building this kit, and I'm thrilled that I did.

The kit really shows it's age, for 1970 this would have been great and fun, but for 2015 this kit begged to be upgraded, and I began searching for new ways to modify the kit, without drastic measures.

First I rescribed the panel lines, I tested Tamiya's Panel Line Scriber, the results were thick heavy lines, which I later learned were better to control if you keep the tool of a straighter ledge, having the scriber higher produces a thicker panel line, I learned this better as I nearly finished the model.

Secondly, I removed the 2 front intakes. They were hollow on the inside, and I wanted to block them off, in addition this would make them much easier to paint, and as I later discovered sand and fill in the fuselage near the cockpit. Using a thin sheet of styrene I blocked off the intakes, and glued them into one solid unit. They were then painted Tamiya XF-56 Metallic Grey, and left to last.

Third, sealing off the gear bays. This is a common problem with older kits and even a few modern ones. To me it's not that big of a deal, having a open gear bay, but I figured out a way to seal them off and I really wanted to try it. By measuring each section of the bay I cut a thin piece of styrene and glued it to the wall, I kept this up going all around the walls until they were sealed in. I them added a few bits to make it look more busy. Once they were painted silver I became really happy with them.

Lastly, I tried something I've always seen done and have wanted to try for years. There are 2 navigation lights on the wings. These were carved as recessed lines. I cut the triangles out and glued a spare piece of styrene in each section, and then sanded them down to fit the surface. I painted either side red and blue, and they really add a nice level of detail.

I painted the upper surfaces with Tamiya XF-50 Field Blue, and XF-81 RAF Green. The blue is supposed to be a darker color, but I really liked the blue of the box art, and I was surprised that the blue actually came out darker than my testing. The underside was painted XF-19 Sky Grey, and Testors Enamel Aluminium.

The decals are a bit old, and took a bit more negotiating to work. However a nice glossy surface really helped in getting them to conform better to the surface. I bleached them in the sun for a few days unfortunately the decals on the bottom showed that the yellowing still occurred. I'm not sure how noticeable it is, I also replaced the gear by doors with thinner sheets of copper. The ones provided in the kit are terribly thick.

Conclusion:

I'm really happy with this kit, this was a really fun model  I'd gladly build again. but I'd never pay more than $5 for it. That's all it's really worth. It's still a good construction, the cockpit lacks any detail aside from a chair and pilot, and the only real error in it's over shape that I found was in front of the canopy just before the black on the nose, this should be more curved and not quite as flat. I'd love to build another but for that I'm going to go out and get the modern tooled Hasegawa kit. Plus the Hasegawa kit's have a nice glossy paint scheme I'd love to try. Still it's a really fun kit, even though it's and old Airfix kit, and we've been doing a lot of tossing them out, this ones still fun, it's got a unique charm to it, and the decal/paint scheme is really fun. If you've still got one build it! If you come across it, give it a chance, I think you will have fun with it.

Special thanks to Rob@basicmodelling, for answering all my questions regarding the Draken.
